phystricks.src.ObjectGraph.ObjectGraph Class Reference

This class is supposed to be used to create other "<Foo>Graph" by inheritance. More...

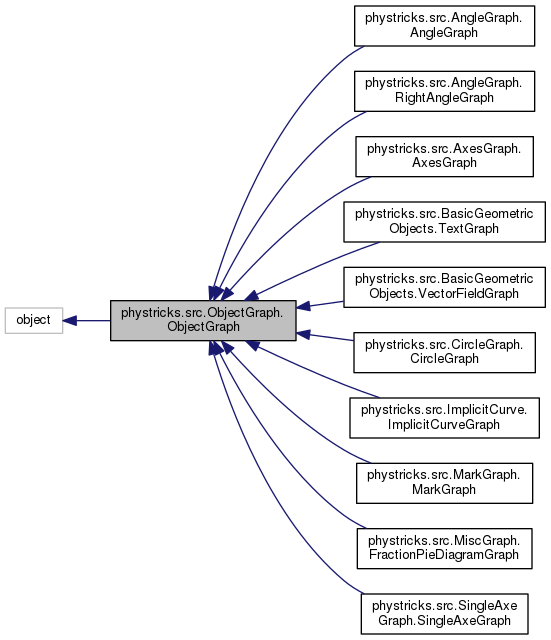

Inheritance diagram for phystricks.src.ObjectGraph.ObjectGraph:

Collaboration diagram for phystricks.src.ObjectGraph.ObjectGraph:

Public Member Functions
def	__init__ (self, obj)
def	draw_edges (self)
def	wave (self, dx, dy)
def	get_arrow (self, llam)
def	get_mark (self, dist, angle=None, text=None, mark_point=None, added_angle=None, position=None, pspict=None)
def	put_mark (self, dist=None, angle=None, text="", mark_point=None, added_angle=None, position=None, pspict=None, pspicts=None)
	put a mark on an object More...
def	add_option (self, opt)
def	get_option (opt)
def	remove_option (opt)
def	merge_options (self, graph)
def	conclude_params (self)
def	params (self, language, refute=[])
def	bracketAttributesText (self, language, refute=[])
def	action_on_pspict (self, pspict)
def	conclude (self, pspict)
def	bounding_box (self, pspict=None)
def	math_bounding_box (self, pspict)
def	latex_code (self, pspict, language=None)

Public Attributes
	obj
	parameters
	wavy
	waviness
	options
	draw_bounding_box
	already_computed_BB
	already_computed_math_BB
	record_add_to_bb
	separator_name
	in_math_bounding_box
	in_bounding_box
	added_objects
	take_BB
	take_math_BB
	mark
	marque

Private Member Functions
def	_draw_added_objects (self, pspict)

Private Attributes
	_draw_edges

Detailed Description

This class is supposed to be used to create other "<Foo>Graph" by inheritance.

Objects that are going to be drawn have to derive from ObjectGraph. When creating you own class,

• do not override bounding_box nor math_bounding_box
• create the functions _bounding_box and eventually _math_bounding_box
• consider the attributes take_BB and take_math_BB.

Constructor & Destructor Documentation

def phystricks.src.ObjectGraph.ObjectGraph.__init__	(		self,
			obj
	)

Member Function Documentation

def phystricks.src.ObjectGraph.ObjectGraph._draw_added_objects (   self,   pspict  )

private

def phystricks.src.ObjectGraph.ObjectGraph.action_on_pspict	(		self,
			pspict
	)

def phystricks.src.ObjectGraph.ObjectGraph.add_option	(		self,
			opt
	)

def phystricks.src.ObjectGraph.ObjectGraph.bounding_box	(		self,
			pspict = None
	)

def phystricks.src.ObjectGraph.ObjectGraph.bracketAttributesText	(		self,
			language,
			refute = []
	)

def phystricks.src.ObjectGraph.ObjectGraph.conclude	(		self,
			pspict
	)

The `conclude` function allows an object to make its ultimate
settings before to be drawn.
This is used for objects like axes that have a list of added objects
(the graduation bars) that can depend on the other objects in the
picture.

def phystricks.src.ObjectGraph.ObjectGraph.conclude_params

(

self

)

However the better way to add something like
linewidth=1mm
to a graph object `seg` is to use
seg.add_option("linewidth=1mm")

def phystricks.src.ObjectGraph.ObjectGraph.draw_edges

(

self

)

def phystricks.src.ObjectGraph.ObjectGraph.get_arrow	(		self,
			llam
	)

return a small arrow at position 'llam'.

This only works if one has a 'get_tangent_vector' method.

- `llam` could be radian, degree or something else, depending on the
    actual object on which you are using this.

def phystricks.src.ObjectGraph.ObjectGraph.get_mark	(		self,
			dist,
			angle = None,
			text = None,
			mark_point = None,
			added_angle = None,
			position = None,
			pspict = None
	)

- `angle` is degree or AngleMeasure

In the internal representation of the mark,
the angle type will be `AngleMeasure`

def phystricks.src.ObjectGraph.ObjectGraph.get_option

(

opt

)

def phystricks.src.ObjectGraph.ObjectGraph.latex_code	(		self,
			pspict,
			language = None
	)

def phystricks.src.ObjectGraph.ObjectGraph.math_bounding_box	(		self,
			pspict
	)

def phystricks.src.ObjectGraph.ObjectGraph.merge_options	(		self,
			graph
	)

Take an other object <Foo>Graph and merges the options as explained in the documentation of the class Options.
That merge takes into account the attributes "color", "style", wavy

def phystricks.src.ObjectGraph.ObjectGraph.params	(		self,
			language,
			refute = []
	)

def phystricks.src.ObjectGraph.ObjectGraph.put_mark	(		self,
			dist = None,
			angle = None,
			text = "",
			mark_point = None,
			added_angle = None,
			position = None,
			pspict = None,
			pspicts = None
	)

put a mark on an object

If you want to put a mark on an object P.put_mark(0.1,text="foobar",pspict=pspict,position="N")

   mark_point is a function which returns the position of the mark point.

   If you give no position (i.e. no "S","N", etc.) the position will
  be automatic regarding the angle.

   - ``angle`` is given in degree.

set position to "center" is dangerous because it puts the center of the box at given angle and distance. Thus the text can be ill placed, especially if the given dist is lower than the half of the box size.

center_direction : the mark is placed in such a way that the center is at given angle, and the box's border at given distance.

def phystricks.src.ObjectGraph.ObjectGraph.remove_option

(

opt

)

def phystricks.src.ObjectGraph.ObjectGraph.wave	(		self,
			dx,
			dy
	)

Member Data Documentation

phystricks.src.ObjectGraph.ObjectGraph._draw_edges

private

phystricks.src.ObjectGraph.ObjectGraph.added_objects

phystricks.src.ObjectGraph.ObjectGraph.already_computed_BB

phystricks.src.ObjectGraph.ObjectGraph.already_computed_math_BB

phystricks.src.ObjectGraph.ObjectGraph.draw_bounding_box

phystricks.src.ObjectGraph.ObjectGraph.in_bounding_box

phystricks.src.ObjectGraph.ObjectGraph.in_math_bounding_box

phystricks.src.ObjectGraph.ObjectGraph.mark

phystricks.src.ObjectGraph.ObjectGraph.marque

phystricks.src.ObjectGraph.ObjectGraph.obj

phystricks.src.ObjectGraph.ObjectGraph.options

phystricks.src.ObjectGraph.ObjectGraph.parameters

phystricks.src.ObjectGraph.ObjectGraph.record_add_to_bb

phystricks.src.ObjectGraph.ObjectGraph.separator_name

phystricks.src.ObjectGraph.ObjectGraph.take_BB

phystricks.src.ObjectGraph.ObjectGraph.take_math_BB

phystricks.src.ObjectGraph.ObjectGraph.waviness

phystricks.src.ObjectGraph.ObjectGraph.wavy

---

The documentation for this class was generated from the following file:

• src/ObjectGraph.py
